Single-holder brush holders for one brush
Material: Brass
Clamping part: extruded brass
Circumferential speed: up to 15 m / s
Code brush holder |
Brush sizes |
C |
Hole |
Width (E) |
Fasteners (M) |
|||
t |
a |
r |
D |
Max. |
||||
84 D 30-7 |
8 |
4 |
16 |
30 |
7 |
8 |
7.5 |
M3 |
85 D 30-7 |
8 |
5 |
16 |
30 |
7 |
8 |
8.5 |
M3 |
105 D 38-7 |
10 |
5 |
16 |
38 |
7 |
8 |
8.5 |
M3 |
126 D 36-10 |
12 |
6.3 |
20 |
36 |
10 |
13 |
10.5 |
M4 |
128 D 40-10 |
12 |
8 |
25 |
40 |
10 |
13 |
12 |
M4 |
168 D 44-10 |
16 |
8 |
25 |
44 |
10 |
13 |
12 |
M4 |
168 D 50-13 |
16 |
8 |
25 |
50 |
13 |
16 |
12 |
M4 |
208 D 50-13 |
20 |
8 |
25 |
50 |
13 |
16 |
12 |
M4 |
208 D 60-13 |
20 |
8 |
25 |
60 |
13 |
16 |
12 |
M4 |
2010 D 60-13 |
20 |
10 |
25 |
60 |
13 |
16 |
14 |
M5 |
2510 D 70-16 |
25 |
10 |
32 |
70 |
16 |
20 |
15 |
M5 |
2512 D 70-16 |
25 |
12.5 |
32 |
70 |
16 |
20 |
17.5 |
M6 |
3212 D 80-16 |
32 |
12.5 |
32 |
80 |
16 |
20 |
17.5 |
M6 |
3216 D 100-16 |
32 |
16 |
32 |
100 |
16 |
20 |
22 |
M6 |
Double clip brush holders

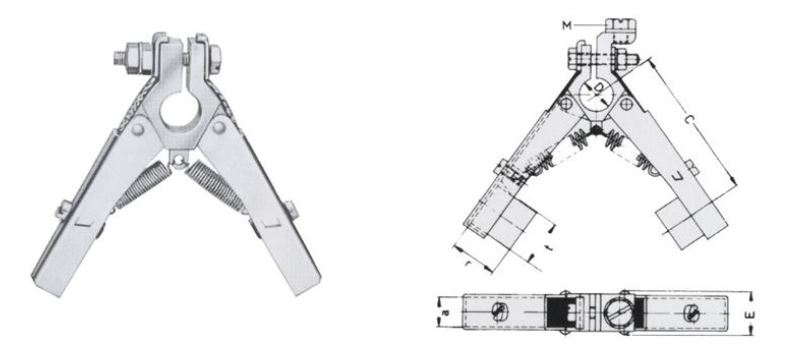

Style 1 Style 2
Clamping part: extruded brass
Circumferential speed: up to 15 m/s
Code brush holder |
Brush sizes |
C |
Hole |
Width (E) |
Faste- ners (M) |
Style |
|||
t |
a |
r |
D |
Max. |
|||||
84 DD 32-10 |
8 |
4 |
16 |
32 |
10 |
- |
8 |
M4 |
1 |
85 DD 30-7 |
8 |
5 |
16 |
30 |
7 |
8 |
8.5 |
M3 |
1 |
105 DD 29-10 |
10 |
5 |
16 |
29 |
10 |
- |
8.5 |
M4 |
1 |
105 DD 38-10 |
10 |
5 |
16 |
38 |
10 |
- |
8.5 |
M4 |
1 |
106 DD 42-10 |
10 |
6.3 |
16 |
42 |
10 |
- |
11 |
M4 |
1 |
126 DD 40-10 |
12.5 |
6.3 |
20 |
40 |
10 |
- |
11 |
M4 |
1 |
166 DD 42-10 |
12.5 |
6.3 |
20 |
42 |
10 |
- |
11 |
M4 |
1 |
128 DD 40-10 |
12.5 |
8 |
25 |
40 |
10 |
13 |
12 |
M5 |
1 |
168 DD 44-10 |
16 |
8 |
25 |
44 |
10 |
13 |
12 |
M5 |
1 |
168 DD 50-13 |
16 |
8 |
25 |
50 |
13 |
16 |
12 |
M5 |
1 |
168 DD 60-13 |
16 |
8 |
25 |
60 |
13 |
16 |
12 |
M5 |
1 |
208 DD 50-13 |
20 |
8 |
25 |
50 |
13 |
16 |
12 |
M5 |
1 |
208 DD 60-13 |
20 |
8 |
25 |
60 |
13 |
16 |
12 |
M5 |
1 |
258 DD 60-12 |
25 |
8 |
25 |
60 |
12 |
15 |
12 |
M5 |
2 |
2010 DD 50-13 |
20 |
10 |
25 |
50 |
13 |
16 |
14.5 |
M5 |
1 |
2010 DD 60-13 |
20 |
10 |
25 |
60 |
13 |
16 |
14.5 |
M5 |
1 |
2510 DD 70-16 |
25 |
10 |
32 |
70 |
16 |
20 |
15,5 |
M6 |
2 |
2512 DD 70-16 |
25 |
12.5 |
32 |
70 |
16 |
20 |
16 |
M6 |
2 |
3212 DD 80-16 |
32 |
12.5 |
32 |
80 |
16 |
20 |
17 |
M6 |
2 |
3216 DD 90-16 |
32 |
16 |
32 |
90 |
16 |
20 |
22 |
M8 |
2 |
3216 DD 110-20 |
32 |
16 |
32 |
110 |
20 |
25 |
22 |
M10 |
2 |
4016 DD 120-20 |
40 |
16 |
40 |
120 |
20 |
25 |
22 |
M10 |
2 |
4020 DD 130-20 |
40 |
20 |
40 |
130 |
20 |
25 |
26 |
M10 |
2 |
Heavy duty brush holders with two clips and tension spring
Material: Brass (Diecast)
Clamping part: extruded brass
Circumferential speed: any value
Brush holder code |
Brush sizes |
Hole |
Width (E) |
Fasteners (M) |
|||||
t |
a |
r |
D |
Max. |
M1 |
M2 |
M3 |
||
168GDDO-16 |
16 |
8 |
32 |
16 |
20 |
15 |
M6 |
- |
M5 |
208 GDD-16 |
20 |
8 |
32 |
16 |
20 |
15 |
M6 |
M6 |
M5 |
2010 GDD-16 |
20 |
10 |
32 |
16 |
20 |
16 |
M6 |
M6 |
M5 |
2010 GDDV-16 |
20 |
10 |
32 |
16 |
20 |
16 |
M6 |
M6 |
M5 |
2510 GDD-16 |
25 |
10 |
32 |
16 |
20 |
16 |
M6 |
M6 |
M5 |
2510 GDDV-16 |
25 |
10 |
32 |
16 |
20 |
16 |
M6 |
M6 |
M5 |
2512 GDD-16 |
25 |
12.5 |
32 |
16 |
20 |
19 |
M8 |
M8 |
M6 |
2512 GDDOV-16 |
25 |
12.5 |
32 |
16 |
20 |
19 |
M8 |
- |
M6 |
2512 GDDV-16 |
25 |
12.5 |
32 |
16 |
20 |
19 |
M8 |
M8 |
M6 |
2516 GDD-20 |
25 |
16 |
40 |
20 |
25 |
22 |
M10 |
M10 |
M8 |
3212 GDD-16 |
32 |
12.5 |
32 |
16 |
20 |
19 |
M8 |
M8 |
M6 |
3216 GDD-20 |
32 |
16 |
40 |
20 |
25 |
22 |
M10 |
M10 |
M8 |
3216 GDDV-20 |
32 |
16 |
40 |
20 |
25 |
22 |
M10 |
M10 |
M8 |
3220 GDD-20 |
32 |
20 |
40 |
20 |
25 |
25 |
M10 |
M10 |
M8 |
4020 GDD-20 |
40 |
20 |
50 |
20 |
25 |
25 |
M10 |
M10 |
M8 |
4020 GDDV-20 |
40 |
20 |
50 |
20 |
25 |
25 |
M10 |
M10 |
M8 |
4032 GDDV-20 |
40 |
32 |
50 |
20 |
25 |
38 |
M10 |
M10 |
M8 |
4032 GDDV-28 |
40 |
32 |
50 |
28 |
32 |
38 |
M10 |
M10 |
M8 |
Brush holders for Siemens
Type of brush holder |
The code |
Brush sizes |
||
t |
a |
r |
||
double cage |
V1207 |
50 |
25 |
50 |
V1274 |
25 |
12.5 |
32 |
|
V1285 |
32 |
16 |
40 |
|
V1296 |
40 |
20 |
50 |
|
single, double and triple rows with self-adjusting clamp |
G1157 |
16 |
25 |
40 |
G1167 |
20 |
25 |
40 |
|
G1168 |
20 |
32 |
50 |
|
G1178 |
25 |
32 |
50 |
|
G1256 |
16 |
20 |
32 |
|
G2234 |
10 |
12.5 |
32 |
|
G1256 |
10 |
12.5 |
32 |
|
self-adjusting tandem clamp |
G5238 |
10 |
32 |
50 |
G5248 |
12.5 |
32 |
50 |
|
G5258 |
16 |
32 |
50 |
|
one, two and three rows, with flange mounting (with tension spring) |
KG110 |
10 |
12.5 |
32 |
KG210 |
10 |
12.5 |
32 |
|
KG216 |
16 |
12.5 |
32 |
|
KG220 |
20 |
12.5 |
32 |
|
KG310 |
10 |
12.5 |
32 |
|
KG316 |
16 |
12.5 |
32 |
|
KG320 |
20 |
12.5 |
32 |
|
KG325 |
25 |
12.5 |
32 |
Brush holders with one clip and tension spring
Material: Brass (Diecast)
Circumferential speed: any value
Brush holder code |
Brush sizes txaxr |
g |
C1 |
b1 |
b2 |
b3 |
b4 |
e |
h1 |
h2 |
l |
B510R |
5x10x20 |
15 |
12.5 |
5.5 |
9.5 |
14.5 |
6 |
4,5 |
15 |
36.5 |
31 |
B610R |
6.3x10x20 |
15 |
13,2 |
5.5 |
9.5 |
14.5 |
6 |
4,5 |
15 |
37 |
31 |
B810R |
8x10x20 |
15 |
14 |
5.5 |
9.5 |
14.5 |
6 |
4,5 |
15 |
38.5 |
31 |
B612R |
6.3x12.5x25 |
20 |
13,2 |
5.5 |
9.5 |
17 |
6 |
4,5 |
20 |
47.5 |
42 |
B812R |
8x12.5x25 |
20 |
14 |
5.5 |
9.5 |
17 |
6 |
4,5 |
20 |
47 |
42 |
B1012R |
10x12.5x25 |
20 |
15 |
5.5 |
9.5 |
17 |
6 |
4,5 |
20 |
47 |
43 |
B816R |
8x16x32 |
22 |
14 |
6.5 |
10.5 |
20.5 |
8 |
5 |
22 |
56 |
38 |
B1016R |
10x16x32 |
22 |
15 |
6.5 |
10.5 |
20.5 |
8 |
5 |
22 |
56 |
38 |
B1216R |
12.5x16x32 |
22 |
16.3 |
6.5 |
10.5 |
20.5 |
8 |
5 |
22 |
55 |
38 |
B620R |
6.3x20x32 |
25 |
13,2 |
6.5 |
10.5 |
24.5 |
8 |
5 |
22 |
56 |
44 |
B820R |
8x20x32 |
25 |
14 |
6.5 |
10.5 |
24.5 |
8 |
5 |
22 |
56 |
44 |
B1020R |
10x20x32 |
25 |
15 |
6.5 |
10.5 |
24.5 |
8 |
5 |
22 |
57 |
44 |
B1220R |
12.5x20x32 |
25 |
16.3 |
6.5 |
10.5 |
24.5 |
8 |
5 |
22 |
60 |
44 |
B1620R |
16x20x32 |
25 |
18 |
6.5 |
10.5 |
24.5 |
8 |
5 |
22 |
60 |
44 |
B825R |
8x25x32 |
29 |
14 |
6.5 |
10.5 |
29.5 |
10 |
5 |
25 |
63 |
52 |
B1025R |
10x25x40 |
29 |
15 |
6.5 |
10.5 |
29.5 |
10 |
5 |
25 |
63 |
52 |
B1225R |
12.5x25x40 |
34 |
16.3 |
6.5 |
10,2 |
29.5 |
10 |
5 |
24 |
69 |
55 |
B1625R |
16x25x40 |
29 |
18 |
6.5 |
10.5 |
29.5 |
10 |
5 |
25 |
69 |
53 |
B2025R |
20x25x40 |
29 |
20 |
6.5 |
10.5 |
29.5 |
10 |
5 |
25 |
70 |
49 |
B1232R |
12.5x32x40 |
29 |
16.3 |
6.5 |
10.5 |
37.5 |
12 |
5 |
25 |
60 |
45 |
B1632R |
16x32x40 |
29 |
18 |
6.5 |
10.5 |
37.5 |
12 |
5 |
25 |
61 |
45 |
B2032R |
20x32x40 |
29 |
20 |
6.5 |
10.5 |
37.5 |
12 |
5 |
25 |
64 |
45 |
B2532R |
25x32x45 |
30 |
22.5 |
6.5 |
10.5 |
37 |
10 |
5.2 |
30 |
80 |
70 |
Single clip brush holders with self-adjusting clamp
Material: Brass (Diecast)
Circumferential speed: any value
Brush holder code |
Brush sizes txaxr |
C1 |
E |
f |
g |
i |
m |
n |
o |
p |
RTR 820 |
8x20x40 |
14 |
24 |
M6 |
10.5 |
32 |
44 |
71 |
17 |
4 |
RTR 1020 |
10x20x40 |
15 |
24 |
M6 |
10.5 |
32 |
45 |
71 |
18 |
4 |
RTR 1220 |
12.5x20x40 |
16.3 |
24 |
M6 |
10.5 |
32 |
46 |
71 |
19 |
4 |
RTR 1225 |
12.5x25x50 |
16.3 |
30 |
M6 |
10.5 |
40 |
57 |
90 |
21 |
5 |
RTR 1625 |
16x25x50 |
18 |
30 |
M6 |
10.5 |
40 |
59 |
90 |
23 |
5 |
RTR 1032 |
10x32x64 |
15,5 |
37 |
M8 |
14.5 |
50 |
66 |
110 |
20 |
5 |
RTR 1232 |
12.5x32x64 |
16.8 |
37 |
M8 |
14.5 |
50 |
67 |
112 |
21 |
5 |
RTR 1632 |
16x32x64 |
18.5 |
37 |
M8 |
14.5 |
50 |
69 |
114 |
23 |
5 |
RTR 2032 |
20x32x64 |
20.5 |
37 |
M8 |
14.5 |
50 |
71 |
116 |
25 |
5 |
RTR 2532 |
25x32x64 |
23 |
37 |
M8 |
14.5 |
50 |
73 |
116 |
28 |
5 |
RTR 2540 |
25x40x64 |
24.5 |
45 |
M8 |
14.5 |
50 |
73 |
116 |
29 |
5 |
To buy brush holders Morgan AM, Schunk, Mersen, Carbone Lorraine, Morgan Rekofa, Pantrac, ATE Industriale for commutator engines, you can contact our specialists to find out the price and more information about the products.
